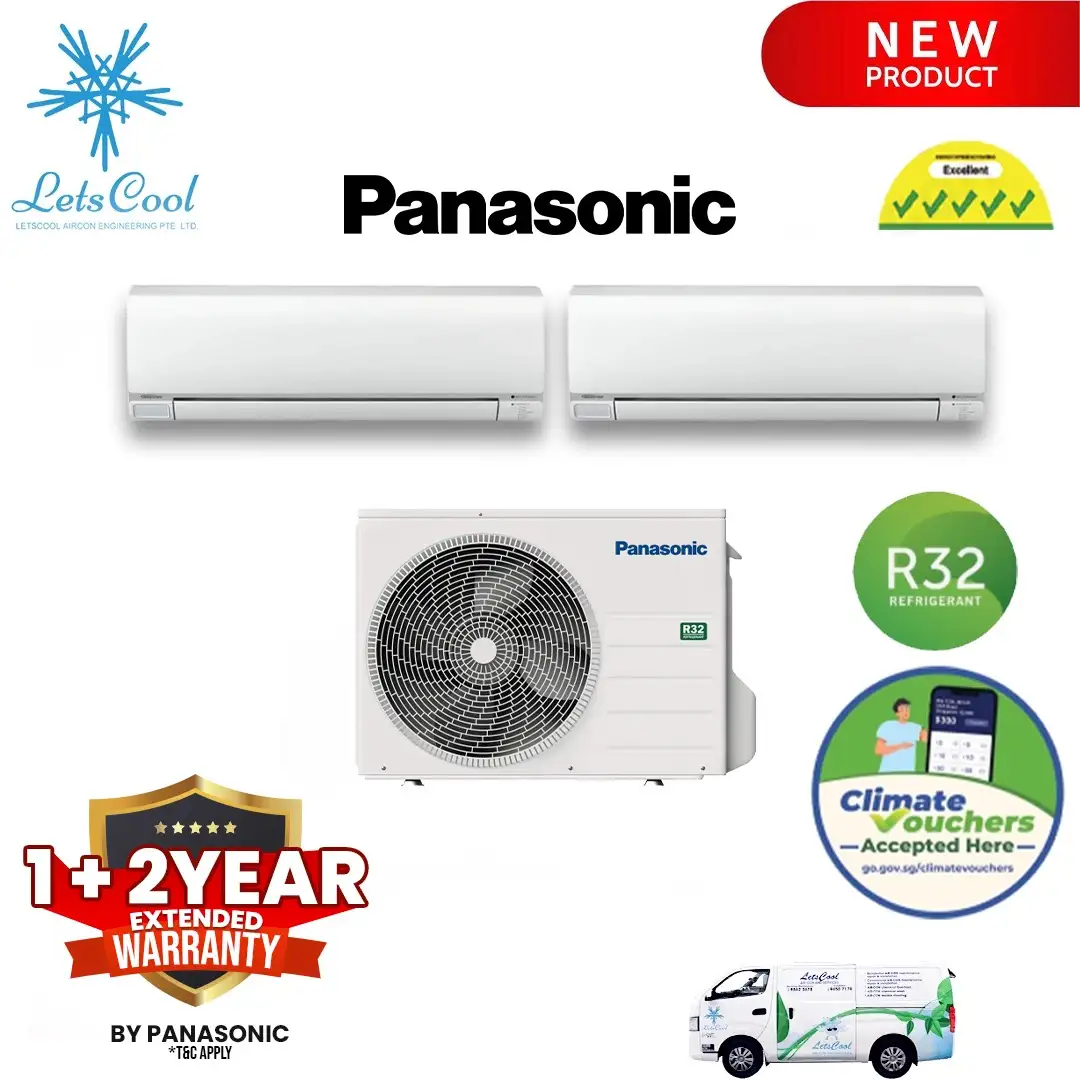

The Panasonic System 2 CU-2XU20YBZ / CS-XU9XKZ / CS-XU9XKZ is a smart cooling choice for homes that need efficient air conditioning for two small rooms. It comes with 9k BTU + 9k BTU indoor units, inverter technology, R32 refrigerant, and a 5-tick energy efficiency rating for better power savings and reliable cooling comfort. Each indoor unit can be controlled independently, while the compact outdoor unit is ideal for homes with limited outdoor installation space.
| Specification | Details |
|---|---|
| Brand | Panasonic |
| Product Type | System 2 Multi-Split Air Conditioner |
| Indoor Unit Model | CS-XU9XKZ + CS-XU9XKZ |
| Outdoor Unit Model | CU-2XU20YBZ |
| Cooling Capacity | 9,000 BTU + 9,000 BTU |
| Total Outdoor Cooling Capacity | 4.50 kW (15,300 Btu/h) |
| System Capacity | System 2 |
| Energy Efficiency Rating | 5 Ticks |
| Technology | Inverter |
| Refrigerant Type | R32 |
| Independent Control | Yes |
| Power Input | 900 W (250–1,800 W) |
| Running Current | 4.3 – 4.0 A |
| Sound Pressure Level | 51 / 46 dB(A) |
| Compressor Output | 900 W |
| Outdoor Unit Size | 619 × 824 × 299 mm |
| Outdoor Unit Weight | 35 kg |
| Pipe Size | Liquid: ø 6.35 mm × 2, Gas: ø 9.52 mm × 2 |
| Maximum Connectable Indoor Units | 2 Units |
| Maximum Connectable Capacity | 9.5 kW |
| Suitable For | 2 small bedrooms or study rooms |
Warranty
• 5 Years Warranty on Compressor
• 1 Year Warranty on Indoor Fan Coil Unit
• 2 Years Workmanship Warranty
(Does not cover water leaking due to no servicing)
Installation Materials Used
To ensure reliable performance and long-term durability, the following premium materials are used during installation:
• 21G / 22G Copper Piping
• 1/2″ Class 0 K-Flex Insulation
• 16mm Drainage Piping
• Tai Sin Certified Electrical Cable (ISO & IEC Standards)
• Singapore-Certified Trunkings
